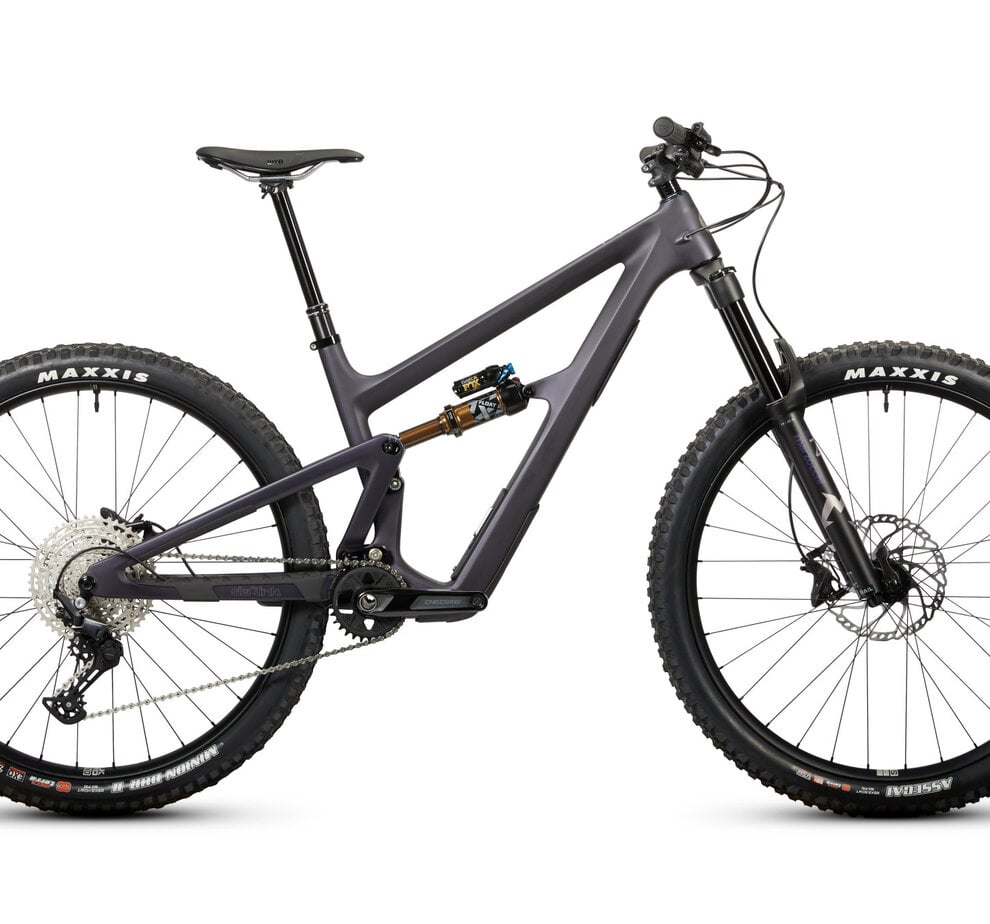

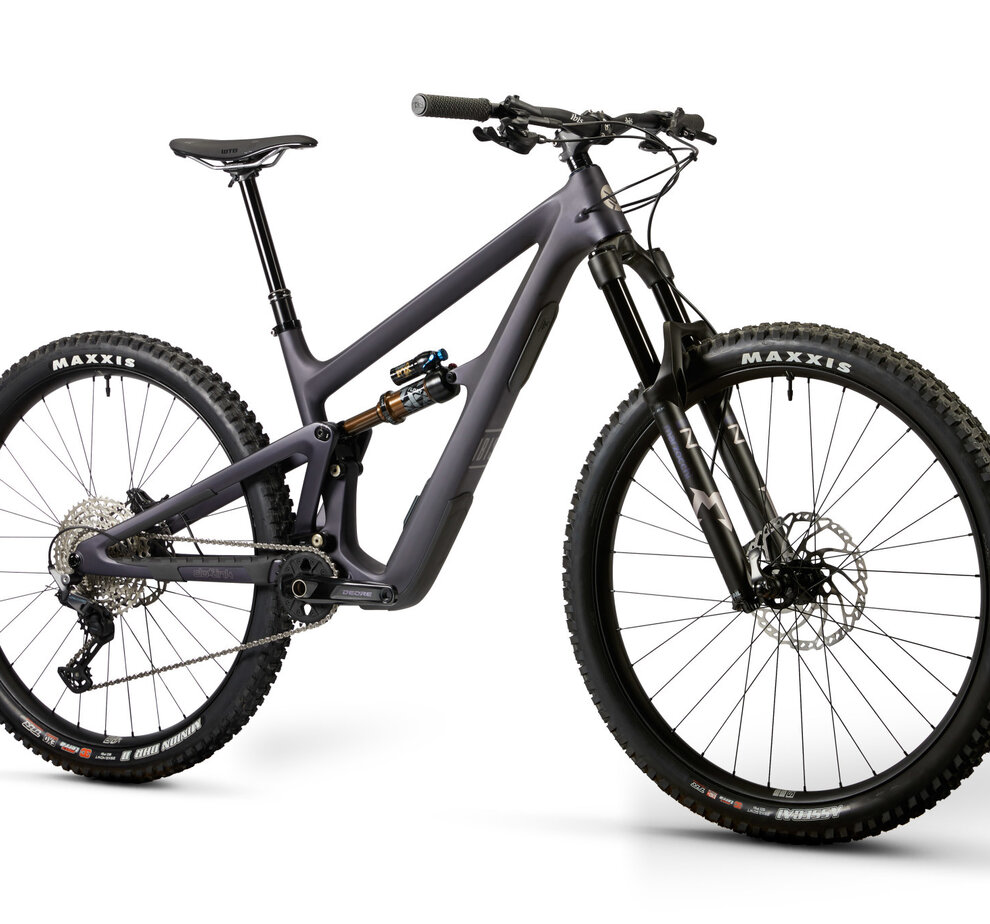

Ripmo MD Purple FS Float X SLX 165mm Kit, 140-170 KS Vantage post, Hi Fi bar, 40mm BFD, Send 29" AL MS wheelset
With multiple "Best in Test" awards and years of high level competition at the notoriously brutal Enduro World Series, it’s the ultimate trail-slaying machine. How do you improve on that?
| Article number: | 210000022046 |
| Availability: | In stock |
| Available in store: | Check availability |
| Component | Standard Component | Upgrade / Option |
|---|---|---|
| Fork | Marzocchi Bomber Z1, 160mm, 29”, 110x15mm
Medium spring installed. More info here. |
|
| Shock | Fox Float X, Factory Series, 2-Pos Adj. w/EVOL, 230mm x 60mm | |
| Wheels | Blackbird Send Alloy, 32 Hole, Ibis Logo Hubs
S–M, F: Send I 29" R: Send II 27.5" |
|
| Front Tire | Maxxis DHF, 29" x 2.5", Exo+ | |
| Rear Tire | Maxxis DHR II, Exo+
S–M: 27.5" x 2.5", XM–XL: 29" x 2.5" |
|
| Brakes | Shimano Deore, M6120, 4-Piston | |
| Rotors (F/R) | Shimano SM-RT66, 203mm/180mm | |
| Crankset | Shimano Deore M6120 24mm spindle, 30t Alloy Ring
S–M: 165mm, XM–XL: 170mm |
|
| Bottom Bracket | Shimano SM BB52 | |
| Rear Derailleur | Shimano Deore, M6100, Shadow Plus | |
| Shifter | Shimano Deore, M6100 | |
| Cassette | Shimano Deore, M6100, 10-51T | |
| Chain | Shimano Deore, M6100 | |
| Headset | Cane Creek 40 ZS44/ZS56 | |
| Grips | Lizard Skin Charger | |
| Handlebar | Ibis Hi Fi, 31.8mm, 800mm | |
| Stem | Ibis 31.8mm
S–M: 40mm, XM–XL: 50mm |
|
| Seatpost | KS Rage-i Dropper 34.9mm
S: 125mm, M: 150mm, XM: 170mm, L–XL: 190mm |
|
| Saddle | WTB Silverado, Fusion, 142mm |
Images may not show actual build kit content. Pricing and specifications subject to change without notice.
We've added a third size in the middle of the bell curve to provide a fit that’s just right. With 80% of our riders falling between 5’5” and 6’0”, we introduced a new "Extra-Medium" size. The extra-medium (size 3) now sits in the middle of our size range, while our size five remains the traditional XL.
We’ve added more adjustability with a new flip chip - now you can run 29” or 27.5”/29” mixed (MX) wheels on all sizes without compromising the geometry. The Extra Medium and larger sizes ship with 29” wheels, while the Small and Medium sizes come with MX wheels.
We continue to use the critically acclaimed dw-link suspension platform known for its efficient climbing and strong downhill performance; it sets the standard for modern mountain bikes.
Drawing on the race-proven HD6 design, the Ripmo now has a coil spring friendly progressive shock rate and shorter clevis which makes it compatible with pretty much any coil shock.
Our size-specific kinematics make sure every size bike pedals amazing while still keeping things quiet and calm on challenging trails.
Get that gear off your back and into your bike with our frame storage system. The latch operates effortlessly, even in cold, muddy conditions while wearing gloves. The door is water-resistant, rattle-free, and robust.
We’ve partnered with Cotopaxi to craft a set of two internal bags for your snacks, tools, or whatever. Cotopaxi is known for high-quality construction and sustainable practices; the bags are crafted from remnants and dead stock, making each bag colorful and unique.
Progressive Geometry
Enhanced bike handling capabilities over rough and steep terrain.
160mm Fork (575mm axle to crown)
| Nominal Size | SM | MD | XM | LG | XL | |
|---|---|---|---|---|---|---|
| Seat Tube | A | 395 | 400 | 415 | 457 | 477 |
| Top Tube | B | 578 | 605 | 630 | 655 | 685 |
| Head Tube | C | 85 | 95 | 110 | 125 | 140 |
| Chainstay 29" | D | 435 | 435 | 436 | 438 | 440 |
| Chainstay MX | D | 432 | 432 | 433 | 435 | 437 |
| Seat Tube Angle | E | 77° | 76.5° | 76.5° | 77° | 77.5° |
| Saddle Height for Seat Tube Angle | F | 650 | 700 | 745 | 790 | 830 |
| Head Tube Angle | G | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
| Wheelbase | H | 1195 | 1219 | 1249 | 1286 | 1329 |
| Stack | I | 616 | 622 | 633 | 643 | 654 |
| Reach | J | 436 | 456 | 478 | 506 | 540 |
| BB Drop 29" | K | 36 | 33 | 30 | 27 | 24 |
| BB Height* | 338 | 341 | 344 | 349 | 350 | |
| Standover | L | 693 | 734 | 757 | 772 | 784 |
| Recommended Seatpost Drop | 140 | 170 | 185 | 213 | 213 | |
| Crank Length | 165 | 165 | 170 | 170 | 170 | |
| Tire Size | 2.35-2.5" | 2.35-2.5" | 2.35-2.5" | 2.35-2.5" | 2.35-2.5" | |
| Water Bottle Size | 1 x 22oz | 1 x 26oz | 1 x 26oz | 1 x 26oz | 1 x 26oz |
*With Maxxis 29x2.4 WT tires = 748mm diameter, 27.5x2.5 WT rear tires = 708mm diameter.
